Door-shutting device / Outline
Door Operating Equipment for Folding Door
Features
- Compact structure with fewer number of parts
- Compactness and light weight with less installation space required
- Easy checking/maintenance
Specifications
| Type | TR-63A1 | TR-75A1 | TR-50B1LN2 |
|---|---|---|---|
| Opening/ closing output (air pressure 0.49Mpa) |
Opening : 748N (76kgf) Closing : 779N (80kgf) |
Opening : 958N (98kgf) Closing : 1207N (123kgf) |
Opening : 837N (86kgf) Closing : 962N (98kgf) |
| Cylinder diameter | φ 63mm | φ 75mm | φ 50mm |
| Stroke | 175mm | ||
| Air pressure used | 0.49~0.83Mpa (5~8.5kgf/cm2) | ||
| Operation system | Differential | Compound | |
| Applicable door mass | 35kg | 50kg | 35kg |
| Product mass | 3.Okg | 3.5kg | 1.5kg |
| Application | For medium / large bus | Ditto (wide door) | For small bus |
| TR-63A1 | TR-75A1 | TR-50B1 LN2 | ||
|---|---|---|---|---|
 |
 |
 |
|
 |
| Door Operating Equipment for Folding Door |
|---|
Door Operating Equipment for Glide Slide Door
Features
- Compactness and light weight and easy installation
- With speed adjustment, cushion function
- Simple structure with fewer number of parts
Specifications
| Type | TGB-50A | TR-13E | TCW-50C1 1235 |
|---|---|---|---|
| Opening/ closing output (air pressure 0.49Mpa) |
Opening : 962N (98kgf) Closing : 776N (79kgf) |
Opening : 745N (76kgf) Closing : 881N (90kgf) |
Opening : 962N (98kgf) Closing : 776N (79kgf) |
| Operation system | Compound | Differential | Compound |
| Cylinder diameter | φ 50mm | φ 65mm | φ 50mm |
| Stroke | 136mm | 140mm | 110mm |
| Air pressure used | 0.49~0.83Mpa (5~8.5kgf/cm2) | ||
| Cushion and speed adjustment | Provided for both opening and closing | ||
| Solenoid valve | TM-12 B separate installation | TM-3 D3 direct connection | TM-12 A direct connection |
| Applicable door mass | 25~30kg | 35kg | 25~30kg |
| Product mass | 2.2kg | 4.Okg | 21 kg |
| Remarks | Right/left cylinder integrated type | ||
| TGB-50A | TR-13E | |
|---|---|---|
 |
|
 |

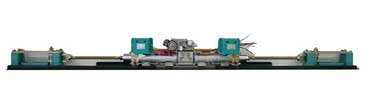

| TCW-50 C1-1235 |
|---|
 |
| Door Operating Equipment for Glide Slide Door |
|---|
Door Shutting Device for Head-jamb Style Sliding Doors
Features
- Compactness and light weight reducing installation spase
- Easy adjustment of opening/closing speed
- Door closong switch, reed switch type
Specifications
| Type | TYS-30CN1L-1033 Non-step vehicle |
TYS-30CN1AL-1033 Non-step vehicle |
TYS-30CS1N1L-1020 Non-step vehicle |
|---|---|---|---|
| Opening/ closing output (air pressure 0.49Mpa) |
Opening:241N(24.5kgf) Closing:185N(18.9kgf) | ||
| Cylinderdiameter | φ30mm | ||
| Doorstroke | 1033mm | 1020mm | |
| Air press used | 0.49~0.83Mpa (5~8.5kgf/cm2) | ||
| Operation system | Compound | ||
| Applicable door mass | 30~40kg | ||
| Product mass | 3.5kg | ||
| Type | TYS-30CN1L-918 One-step vehicle |
TYS-30CN1AL-1000 One-step vehicle |
TYS-30CS1N1L-955 One-step vehicle |
|---|---|---|---|
| Opening/ closing output (air pressure 0.49Mpa) |
Opening:241N(24.5kgf) Closing:185N(18.9kgf) | ||
| Cylinderdiameter | φ30mm | ||
| Doorstroke | 918mm | 1000mm | 955mm |
| Air press used | 0.49~0.83Mpa (5~8.5kgf/cm2) | ||
| Operation system | Compound | ||
| Applicable door mass | 30~40kg | ||
| Product mass | 3.1kg | 3.3kg | 3.2kg |
| TYS-30 CN1L-918 TYS-30 CN1L-1033 |
|---|
 |
| Door Shutting Device for Head-jamb Style Sliding Doors |
|---|
Door Operating Equipment for Swing Door
Features
- Compact design and high power
- Wide assortment of models making it possible to select door operating equipment to match the door
- Unique strycture originally developed
Specifications
| Type | TS-8H-1HG | TS-8ES6-2ML | TS-8ES7-2NL |
|---|---|---|---|
| Maximum output (airpressure0.59Mpa) |
80.4kgf | ||
| Cylinder inside diameter | φ100mm | ||
| Maximumtum turning angle | 140° | ||
| Operationsystem | Compound | ||
| Air pressure used | 0.49~0.83Mpa(5~8.5kgf/cm2) | ||
| Tumingsystem | Ball screw type with lift-up | ||
| Lift-up stroke | Max.20mm | ||
| Push-up force (air pressure 0.59Mpa) |
3.73kN(380kgf) | ||
| Applicable door | 50kg | ||
| Productmass | 21.8kg(Cylinder 13.5kg) | 24.0kg(Cylinder 14kg) | 24.0kg(Cylinder 14kg) |
| vehicle body manufacturer | JS Komatsu | MitsUbishi Fuso BuS | NishiNinon Shatai Kogyo |
| Remarks | With opening reversing function(torque 6kgf/m) | ||
| TS-8H-1HG | TS-8E6-2ML | TS-8ES7-2NL | ||
|---|---|---|---|---|
 |
|
 |
|
 |
| Door Operating Equipment for Swing Door |
|---|
